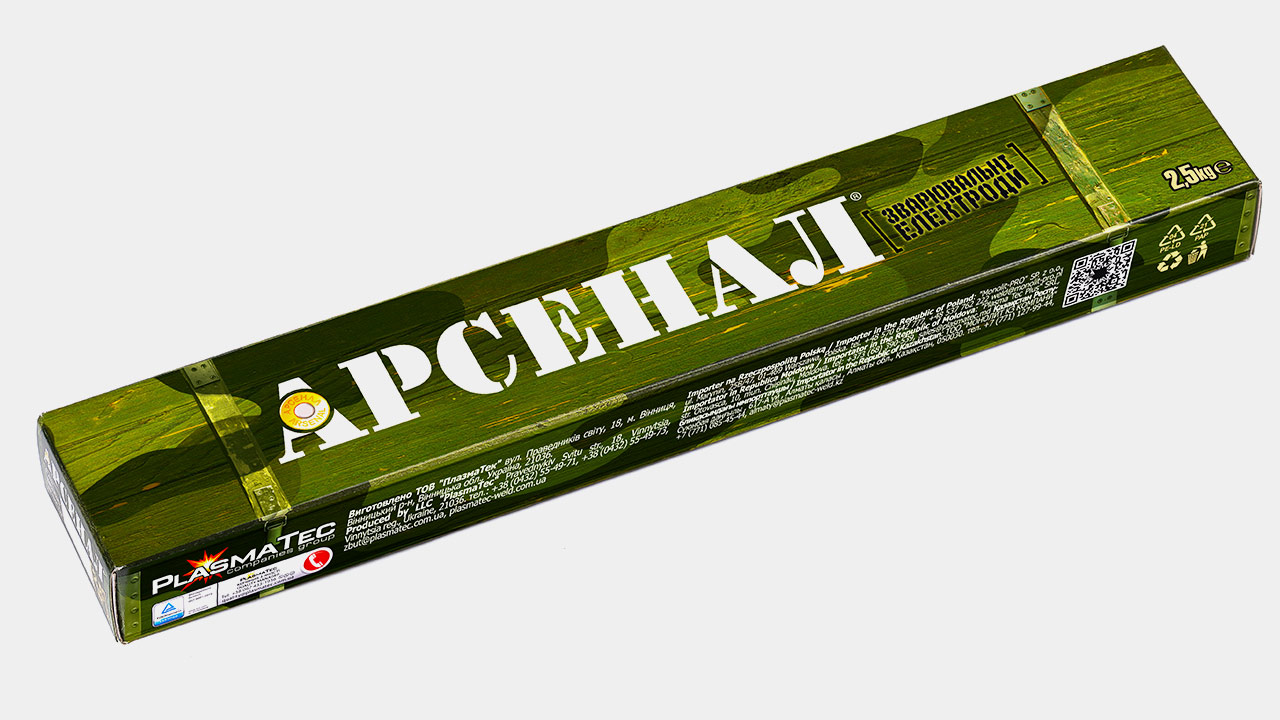

Електроди зварювальні АРСЕНАЛ ЦЛ-11 АРС

AWS A5.4: E 347-16
EN ISO 3581-А-E 19 9 Nb R 1 2
CONDITIONS OF USE
  • welding is carried out in all spatial positions on direct current of reverse polarity or alternating current from a transformer with a no-load voltage of 50±5 V
  • welding must be performed with a short arc, without transverse oscillations
SPECIAL PROPERTIES
  • excellent mechanical properties of the deposited metal and increased corrosion resistance in aggressive environments at temperatures up to 450 °С
  • high resistance against intercrystalline corrosion
  • increased resistance of the deposited metal to the formation of hot cracks
  • high welding-technological properties, low spattering, practically self-separation of the slag crust and seam formation with a smooth transition to the base metal
  • surfacing coefficient: 0.18...0.19 g/A•min
  • consumption of electrodes per 1 kg of deposited metal: 1.5...1.6 kg
Electrodes CL-11 ARS with rutile coating are intended for welding of austenitic corrosion-resistant steels 08Х18Н12Т, 08Х18Н12Б, 03Х18Н11, 06Х18Н11, 08Х18Н12Б, 08Х18Н10, 12Х18Н10Т, AISI304, AISI347, etc., working in aggressive environments at temperatures up to 450°C. Used for welding pressure vessels, pipelines, equipment parts in the food and petrochemical industry, energy mechanical engineering, energy.
Package Weight
First select diameter
Packaging data
Diameter, mm Length, mm Number of electrodes in a pack, pcs. Pack weight, kg
3.0 350 30…32 1.0
4.0 350 18…19 1.0
Package Weight
First select diameter
Type of coating
rutile
Weld metal chemical composition, %
According to AWS A5.1 / Typical results
C
Carbon
≤ 0,08
Mn
Manganese
≤ 2,0
Si
Silicon
≤ 1,0
P
Phosphorus
≤ 0,030
S
Sulfur
≤ 0,025
Mo
Molybdenum
≤ 0,75
Cu
Copper
≤ 0,75
Cr
Chrome
18…21
Ni
Nickel
9…11
Nb+Ta
Niobium + Tantalum
8хC до 1,0
Weld metal mechanical properties
According to AWS A5.1 / Typical results
  • Tensile strength, MPa: ≥ 550
  • Elongation, % ≥ 25
  • Yield strength, MPa: ≥ 350
  • Impact strength, J,KV, +20 C ≥ 47
Re-drying before welding
  • permissible moisture content in the coating before use is no more than 0.2%
  • in case of wetting of the electrode coating above the norm - dry for 60 minutes at 400±10 °С
FERRITE NUMBER IN THE DEPOSITED METAL
4-14 FN
Welding parameters
Welding current strength, A for electrodes with a diameter of, mm
3.0 mm 4.0 mm
70-100 90-130
Welding should be carried out with direct current of reverse polarity, "+" on the electrode, or with alternating current from a transformer with a voltage of 50 V.
WELDING POSITIONS
PA
PB
PC
PF
PE
PD
